Fully Automatic Slitting & Rewinding Machine

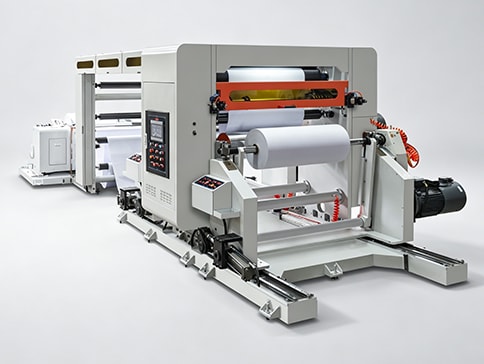

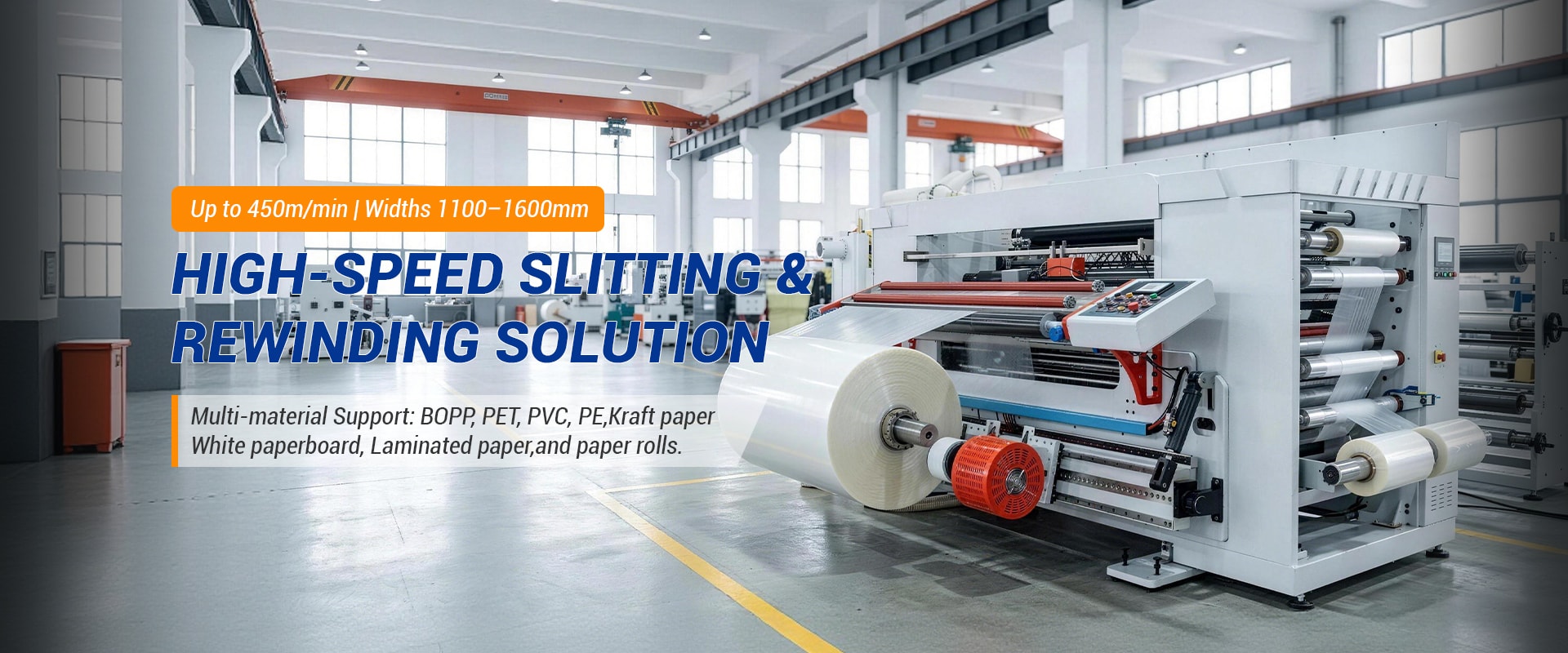

High-Speed Fully Automatic Slitting & Rewinding Machine (YG Series)Designed for industrial performance, this Fully Automatic High-Speed Slitter Rewinder delivers precise processing up to 450 m/min with smooth acceleration. Featuring dual slitting modes (flat knife & knife groove), it is equipped with hydraulic shaftless loading/unloading systems, automatic web guiding, meter counting, and smart alarm functions to maximize production efficiency. The machine offers versatile slitting solutions for jumbo rolls ranging from 50–300 g/m², including kraft paper, white cardboard, aluminum foil, PVC/PE films, and self-adhesive, easily catering to frequent order changes and varied specifications.
Contact Us Now
Best-Selling Machine

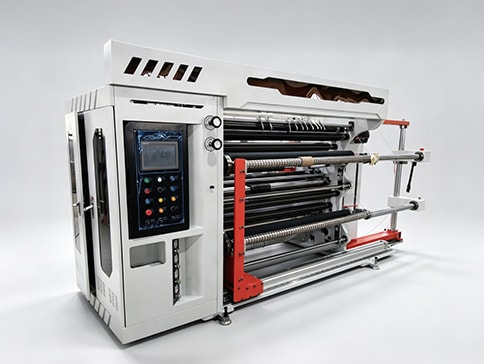

High-speed Slitting Machine
Get A Quote
High-speed Slitting Machine

*High-speed wide-to-narrow slitting *10-450 m/min speed *Quick change for frequent orders

Get A Quote

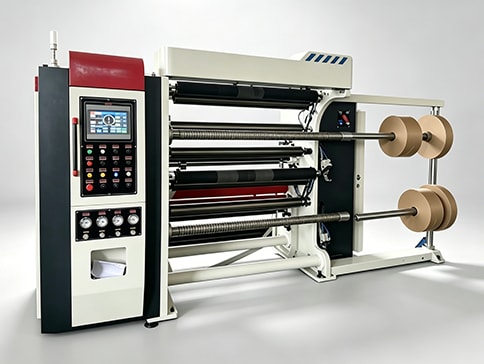

Slitting and Rewinding Machine
Get A Quote
Slitting and Rewinding Machine

*Slits and rewinds into rolls *Max rewinding 1200mm diameter *Individual tension per narrow roll

Get A Quote

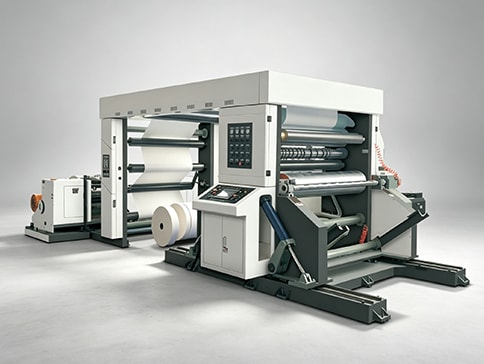

Gantry Type Slitter Rewinder
Get A Quote
Gantry Type Slitter Rewinder

*Heavy-duty wide material processing *Max width up to 1600mm *Uniform tension across all strips

Get A Quote
Thermal Paper Slitter Rewinder
Get A Quote
Thermal Paper Slitter Rewinder

*Thermal paper specialized slitting *10-450 m/min running speed *Scratch-proof coated surface protection

Get A Quote

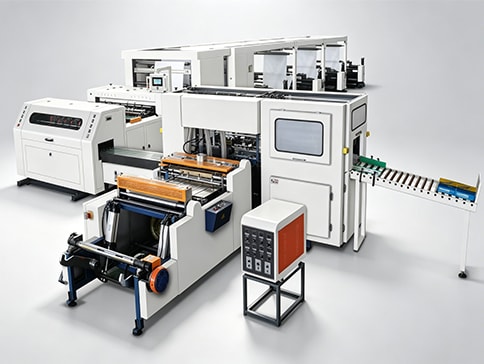

A4 Paper Slitting Machine
Get A Quote
A4 Paper Slitting Machine

*Jumbo rolls to finished sheets *±0.2mm cutting precision *Slitting & cross-cutting combined

Get A Quote

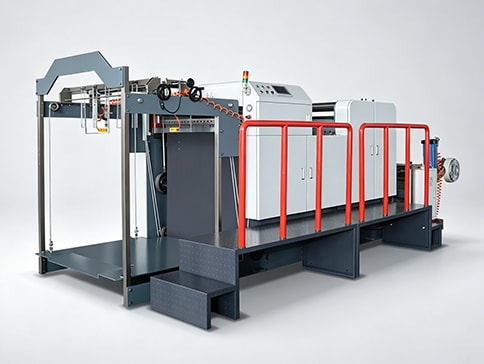

High-speed Cross-cutting Machine
Get A Quote
High-speed Cross-cutting Machine

*Continuous rolls to cut lengths *Up to 200 cuts/min *Color-mark tracking for precise cutting

Get A Quote
Machine Specifications
Machine TypeFully Automatic High-Speed Slitting MachineA4 Paper Cutting Machine
ModelYG-1100AYG-1300AYG-1600AYG-1100A4YG-1400A4

Max. Unwinding/

Feeding Width

1100mm1300mm1600m1100mm1400mm

Max. Unwinding/

Material Diameter

1600mm1600mm1600mm1400mm1400mm

Min. Slitting/

Cutting Width

50mm50mm50mmA3/A4A3/A4

Max. Rewinding

Diameter

1000/1200mm1000/1200mm1000/1200mm——
Speed10-450m/min10-450m/min10-450m/min≤200times/min≤200times/min
Precision———±0.2mm±0.2mm
Total Power22kW22kW24kW12kW12kW
Power Supply380V/50Hz380V/50Hz380V/50Hz——
Weight5600KG6000KG6400KG4500KG4800KG
Overall Dimension4200×3200×1950mm4200×3400×1950mm4200×3700×1950mm8600×1800×1350mm8600×2100×1350mm
Machine TypeFully Automatic High-Speed Slitting MachineA4 Paper Cutting Machine
ModelYG-1100AYG-1300AYG-1600AYG-1100A4YG-1400A4

Max. Unwinding/

Feeding Width

1100mm1300mm1600m1100mm1400mm

Max. Unwinding/

Material Diameter

1600mm1600mm1600mm1400mm1400mm

Min. Slitting/

Cutting Width

50mm50mm50mmA3/A4A3/A4

Max. Rewinding

Diameter

1000/1200mm1000/1200mm1000/1200mm——
Speed10-450m/min10-450m/min10-450m/min≤200times/min≤200times/min
Precision———±0.2mm±0.2mm
Total Power22kW22kW24kW12kW12kW
Power Supply380V/50Hz380V/50Hz380V/50Hz——
Weight5600KG6000KG6400KG4500KG4800KG
Overall Dimension4200×3200×1950mm4200×3400×1950mm4200×3700×1950mm8600×1800×1350mm8600×2100×1350mm

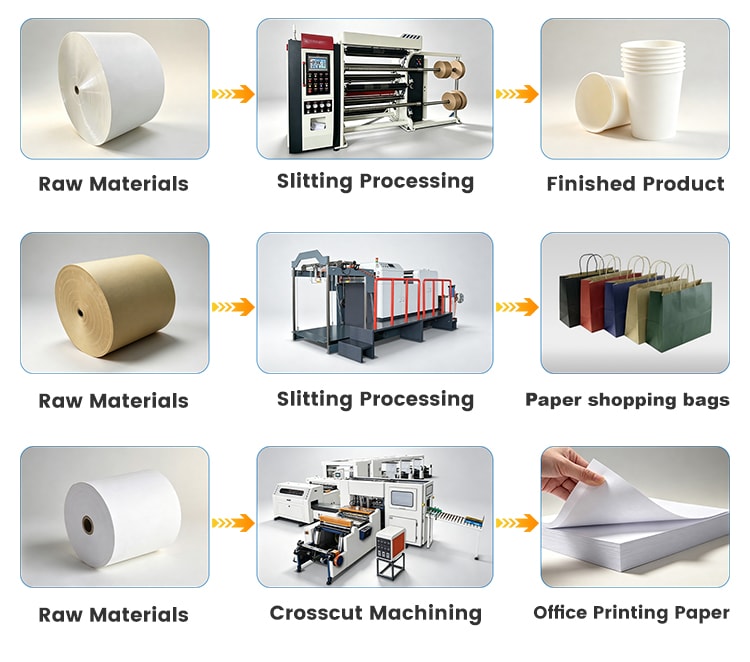

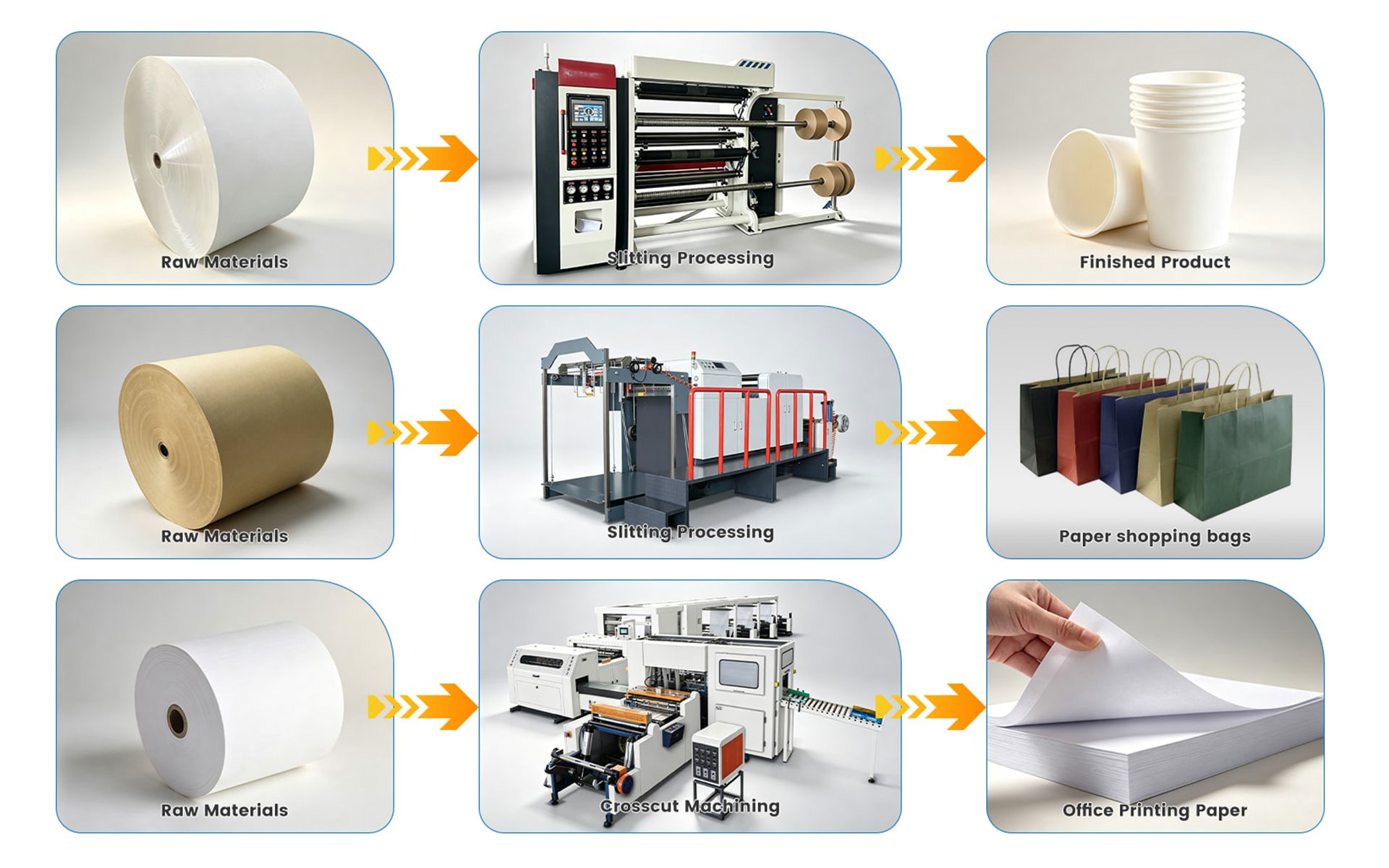

Processing Steps
From jumbo rolls to finished products — slitting, rewinding, and cross-cutting in one line.

3

移动端生产流程

3

移动端生产流程

Product Advantages
Industrial-grade configuration for smooth acceleration, precise slitting, and efficient rewinding.
1.FREQUENCY CONVERSION SPEED REGULATION

Maintain balanced operationduring acceleration

Get A Quote →
2.CUTTING METHOD

Two slitting methods, flat knifeslitting and knife groove slitting

Get A Quote →
3.HYDRAULIC SHAFTLESS AUTOMATIC LOADING

Convenient winding andunloading automatic un-loading device

Get A Quote →
4.INTELLIGENT OPERATION

Automatic meter counting and alarmfunctions.

Get A Quote →
5.DUAL AIR-EXPANDING SHAFT WINDING

The winding adopts A and B air-expanding shaft structures, which is easy to disassemble and install.

Get A Quote →
